前言
Flutter的Icon图标组件学习笔记
Icon图标组件
加载图标
加载内置图标
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
| import 'package:flutter/material.dart';
void main() { runApp(MaterialApp( home: Scaffold( appBar: AppBar( title: const Text("文本内容"), ), body: const Column( children: [ App(), ], ), ), )); }
class App extends StatelessWidget { const App({super.key});
@override Widget build(BuildContext context) { return const Column( children: [ Icon(Icons.home) ], ); } }
|
加载第三方图标
加载阿里巴巴图标iconfont

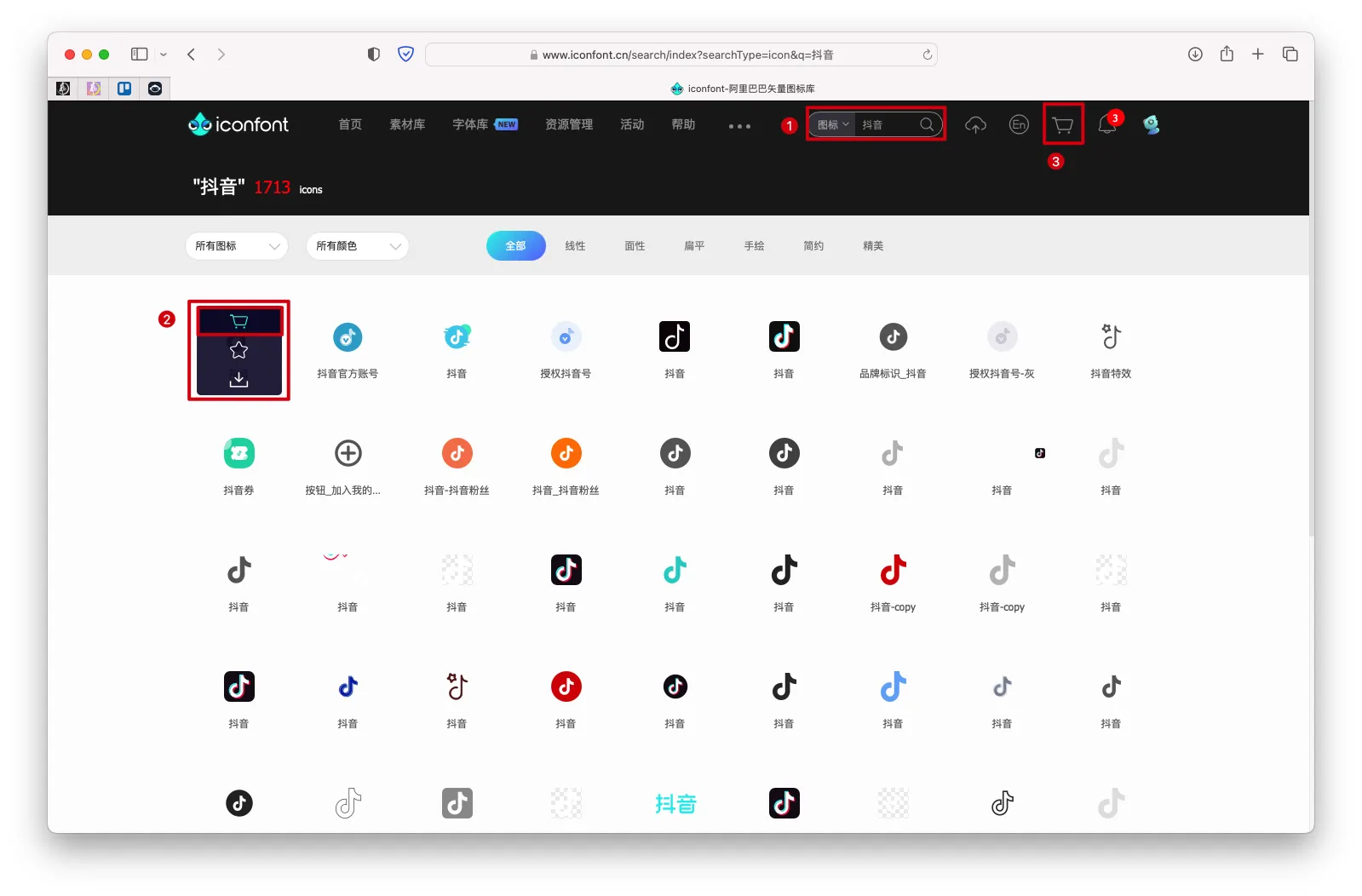

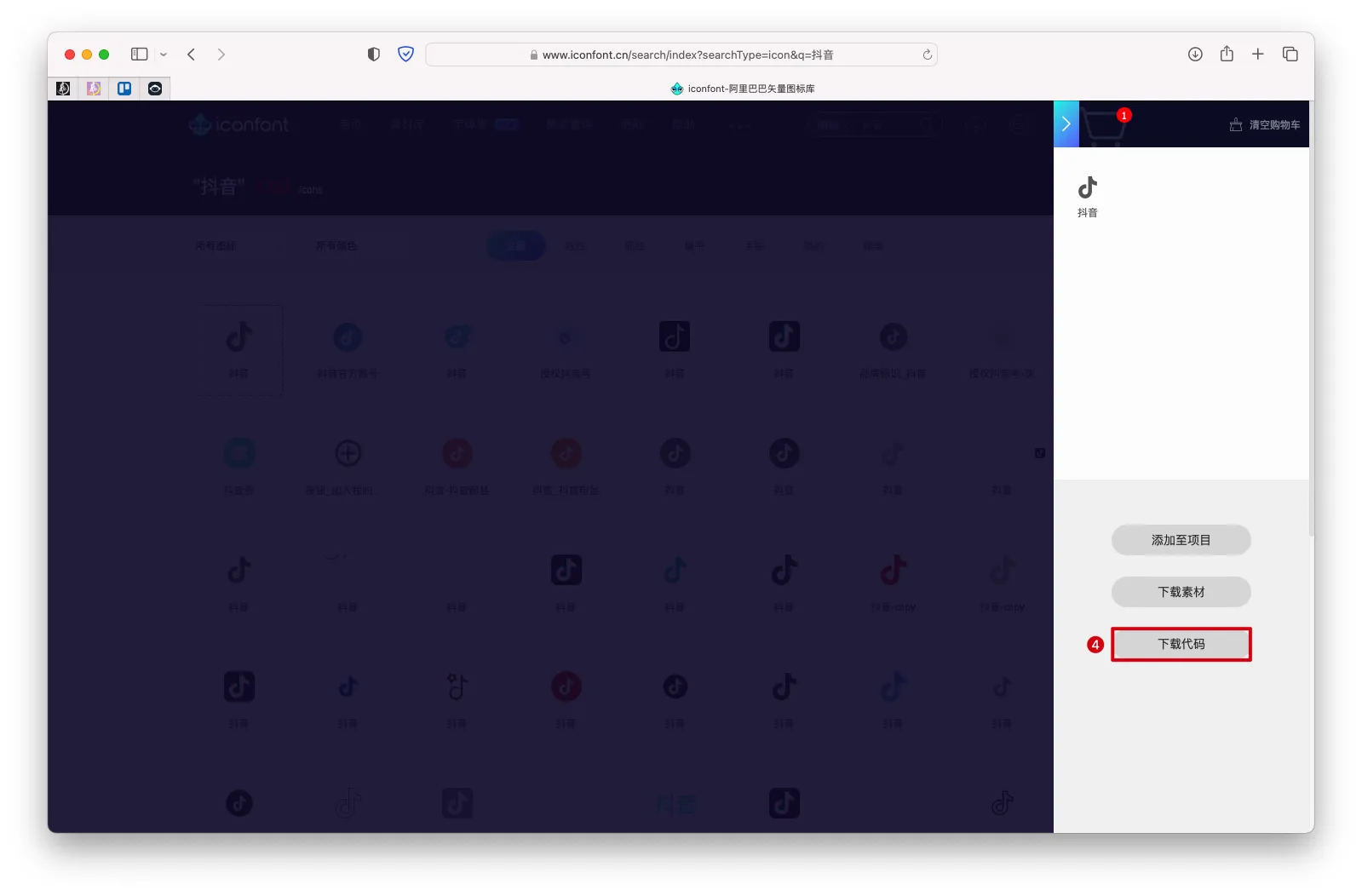

下载图标
- 在项目的根目录创建一个
fonts
目录
- 将下载后的压缩包解压,将其中的
iconfont.json
和iconfont.ttf
移动到项目的fonts
目录下
iconfont.json
文件仅用来查找family字段值和图标所对应的unicode字段值,用完后可以删掉无需一直保留
1 2 3 4
| + 项目名 + fonts - iconfont.json - iconfont.ttf
|
修改配置文件
family
:在fonts/iconfont.json
中找到family字段的值
pubspec.yaml1 2 3 4 5
| flutter: fonts: - family: iconfont fonts: - asset: fonts/iconfont.ttf
|
创建一个自定义字体类
0xe8db
:在fonts/iconfont.json
中找到对应图标的unicode字段的值,添加0x
作为前缀
fontFamily
:在pubspec.yaml
中找到对应图标的family字段的值
lib/IconFont.dart1 2 3 4 5 6 7 8 9 10 11
| import 'package:flutter/material.dart';
class IconFont {
static const IconData douyin = IconData( 0xe8db, fontFamily: "iconfont", matchTextDirection: true );
}
|
加载第三方图标
- 引入自定义字体类,通过自定义字体类中的静态属性加载第三方图标
lib/main.dart1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
| import 'package:flutter/material.dart'; import 'IconFont.dart';
void main() { runApp(MaterialApp( home: Scaffold( appBar: AppBar( title: const Text("文本内容"), ), body: const Column( children: [ App(), ], ), ), )); }
class App extends StatelessWidget { const App({super.key});
@override Widget build(BuildContext context) { return const Column( children: [ Icon(IconFont.douyin) ], ); } }
|
指定图标颜色
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
| import 'package:flutter/material.dart';
void main() { runApp(MaterialApp( home: Scaffold( appBar: AppBar( title: const Text("文本内容"), ), body: const Column( children: [ App(), ], ), ), )); }
class App extends StatelessWidget { const App({super.key});
@override Widget build(BuildContext context) { return const Column( children: [ Icon( Icons.home, color: Colors.red, ) ], ); } }
|
指定图标大小
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
| import 'package:flutter/material.dart';
void main() { runApp(MaterialApp( home: Scaffold( appBar: AppBar( title: const Text("文本内容"), ), body: const Column( children: [ App(), ], ), ), )); }
class App extends StatelessWidget { const App({super.key});
@override Widget build(BuildContext context) { return const Column( children: [ Icon( Icons.home, size: 10, ) ], ); } }
|
完成
参考文献
哔哩哔哩——筱筱知晓
