前言
通过Truffle脚手架工具开发智能合约
安装Truffle
初始化项目
通过命令行创建项目
1 2 3
| mkdir demo cd demo truffle init
|
通过IDEA插件创建项目
安装插件

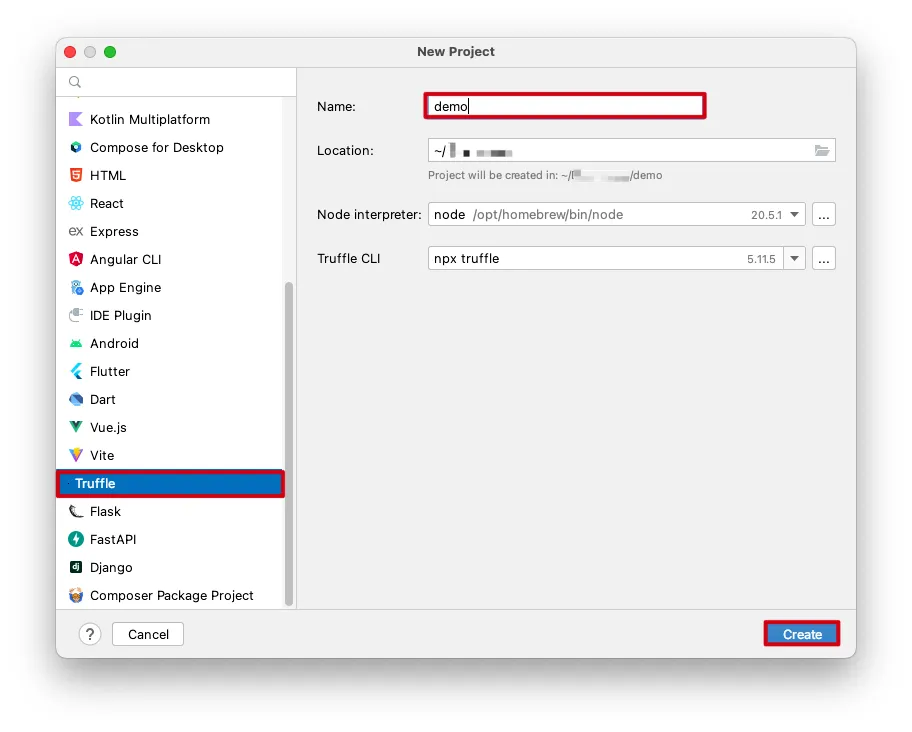

创建项目
项目结构
1 2 3 4 5
| + <project_name> + contracts // 核心程序 + migrations // 部署脚本 + test // 测试程序 - truffle-config.js // 配置文件
|
项目配置
配置区块链网络
truffle-config.js1 2 3 4 5 6 7 8 9
| module.exports = { networks: { development: { host: "127.0.0.1", port: 8545, network_id: "*", }, } }
|
配置上链付费账号
- 如果不指定付费账号,默认将MetaMask首选账号作为上链付费账号
<public_key>
:测试链的测试钱包公钥
truffle-config.js1 2 3 4 5
| module.exports = { advanced: { from: "<public_key>", } }
|
配置优化
truffle-config.js1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
| module.exports = { compilers: { solc: { version: "0.8.21", settings: { optimizer: { enabled: false, runs: 200 }, evmVersion: "byzantium" } } }, }
|
创建智能合约
// SPDX-License-Identifier: GPL-3.0
:指定合约的开源协议
pragma solidity ^0.8.0;
:指定合约运行的编译器版本
UserStorage
:合约名必须与文件名保持一致
contracts/UserStorage.sol1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
| // SPDX-License-Identifier: GPL-3.0 pragma solidity ^0.8.0;
contract UserStorage { string name; uint age;
function setUser(string memory _name, uint _age) public { name = _name; age = _age; }
function getUser() public view returns (string memory, uint) { return (name, age); } }
|
创建部署脚本
- 在
migrations
目录下创建以数字开头的js文件
migrations/1_deploy.js1 2 3 4 5
| const Contacts = artifacts.require("UserStorage.sol");
module.exports = function(deployer) { deployer.deploy(Contacts); }
|
编译智能合约
编译并部署智能合约
migrate
命令会先编译后部署,包含了compile
命令的功能
- 根据部署脚本编译并部署智能合约
- 如果包含脚本被部署一次,则再次执行部署将不会运行部署脚本
- 如果想要部署新的智能合约,可以添加新的部署脚本文件,文件名需要与之前部署过智能合约的脚本文件名不同
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
| Compiling your contracts... =========================== > Everything is up to date, there is nothing to compile.
Starting migrations... ====================== > Network name: 'development' > Network id: 1695793311003 > Block gas limit: 30000000 (0x1c9c380)
1_deploy.js ===========
Deploying 'UserStorage' ----------------------- > transaction hash: 0x459e458aa8d37e8fe27eeb99a19532251a71979265c3a96f45b1b197db184508 > Blocks: 0 Seconds: 0 > contract address: 0x38214aa6420c38c5EF03e8cd642D137f06a65aC7 > block number: 1 > block timestamp: 1695805238 > account: 0xfCF41f704eE38101F402d48f31F422D756A69a70 > balance: 999.998507524375 > gas used: 442215 (0x6bf67) > gas price: 3.375 gwei > value sent: 0 ETH > total cost: 0.001492475625 ETH
> Saving artifacts ------------------------------------- > Total cost: 0.001492475625 ETH
Summary ======= > Total deployments: 1 > Final cost: 0.001492475625 ETH
|
重新编译并部署智能合约
- 如果修改了某个已经部署智能合约的脚本内容,而没有修改脚本文件名,则需要通过
--reset
覆盖之前的编译结果并重新部署智能合约
测试智能合约
通过Truffle控制台测试
进入Truffle控制台
deployed()
:实例化一个类
1 2 3
| truffle(development)> const obj = await UserStorage.deployed(); truffle(development)> console.log(obj); truffle(development)> console.log(obj.address);
|
进入Truffle控制台
Ctrl
+C
两次
Ctrl
+D
一次
- 输入
.exit
命令并回车执行
通过Mocha测试
通过Truffle脚本测试
编写测试脚本
- 在测试脚本中内置了
artifacts
对象和web3
对象,可以直接使用
scripts/test.js1 2 3 4 5 6 7 8 9 10 11
| const Contacts = artifacts.require("UserStorage.sol");
module.exports = async function(callback) {
var obj = await Contacts.deployed(); await obj.setUser("", 1); var res = await obj.getUser(); console.log(res);
callback(); }
|
执行测试脚本
1
| truffle exec ./scripts/test.js
|
完成
