【笔记】Linux部署Elkeid

发表于 2025-01-13 更新于 2025-12-26 阅读次数：

前言

Linux部署Elkeid

准备工作

8C16G主机

不足16G时，deploy阶段可能会报错：when deploying, an error occurred: AgentCenter installed faield: retry with 0 times and still failed, error: AgentCenter test Failed, Host 127.0.0.1, Url http://127.0.0.1:8088/registry/detail?name=hids_svr_grpc, Error {"data":[],"msg":"ok"}

下载项目

wget https://github.com/bytedance/Elkeid/releases/download/v1.9.1.4/elkeidup_package_v1.9.1.tar.gz.00
wget https://github.com/bytedance/Elkeid/releases/download/v1.9.1.4/elkeidup_package_v1.9.1.tar.gz.01
wget https://github.com/bytedance/Elkeid/releases/download/v1.9.1.4/elkeidup_package_v1.9.1.tar.gz.02
cat elkeidup_package_v1.9.1.tar.gz.* > elkeidup_package_v1.9.1.tar.gz

为指定服务器部署

配置ssh

确保可以与指定服务器进行ssh通讯

没有正确配置ssh，deploy阶段可能会报错：when deploying, an error occurred: Redis component load init faield: execute -o StrictHostKeyChecking no -o PasswordAuthentication no -p 22 root@127.0.0.1 echo elkeid_$ failed, err: exit status 255, stderr: root@127.0.0.1: Permission denied (publickey,password).

<ip>：将要部署Elkeid的服务器IP地址

1	ssh-copy-id <ip>

解压压缩包

mkdir -p /root/.elkeidup
mv elkeidup_package_v1.9.1.tar.gz /root/.elkeidup/elkeidup_package_v1.9.1.tar.gz
cd /root/.elkeidup
tar -zxvf elkeidup_package_v1.9.1.tar.gz
chmod a+x /root/.elkeidup/elkeidup

生成配置文件

<ip>：将要部署Elkeid的服务器IP地址

1 2	/root/.elkeidup/elkeidup init --host <ip> mv /root/.elkeidup/config_example.yaml /root/.elkeidup/config.yaml

替换编译好的核心（可选）

下载

1	wget https://github.com/bytedance/Elkeid/releases/download/v1.9.1.4/ko_1.7.0.10.tar.xz

替换

1 2	rm /root/.elkeidup/package/to_upload/agent/component/driver/ko.tar.xz cp ko_1.7.0.10.tar.xz /root/.elkeidup/package/to_upload/agent/component/driver/ko.tar.xz

开始部署部署

--package /root/.elkeidup/package/：指定解压后的安装包路径
--config /root/.elkeidup/config.yaml：指定配置文件

1	/root/.elkeidup/elkeidup deploy

如下提示表示部署完成

1 2	[INFO] --- Elkeid Backend installation is complete --- [WARN] The password file is in /root/.elkeidup/elkeid_passwd, please be sure to transfer, save and delete the file!

此时可以查看各个组件访问路径及默认密码

1	cat /root/.elkeidup/elkeid_passwd

Redis:  xxxxxxxxxxxxxxxxxx
nginx_uploader: admin xxxxxxxxxxxxxxxxxx
prometheus: admin xxxxxxxxxxxxxxxxxx
Mongodb: admin xxxxxxxxxxxxxxxxxx
Mongodb: elkeid xxxxxxxxxxxxxxxxxx
AC: AK xxxxxxxxxxxxxxxx
AC: SK xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
MG: AK xxxxxxxxxxxxxxxx
MG: SK xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
LD: AK xxxxxxxxxxxxxxxx
LD: SK xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
elkeid_console: root xxxxxxxxxxxxxxxxxxxx
elkeid_console: admin xxxxxxxxxxxxxxxxxxxx
elkeid_hub_frontend: elkeid_hub xxxxxxxxxxxxxxxxxxxx
grafana: admin xxxxxxxxxxxxxxxxxx
Kafka: admin: elkeid
elkeid_kafka: 127.0.0.1:9092;
grafana: http://127.0.0.1:8083

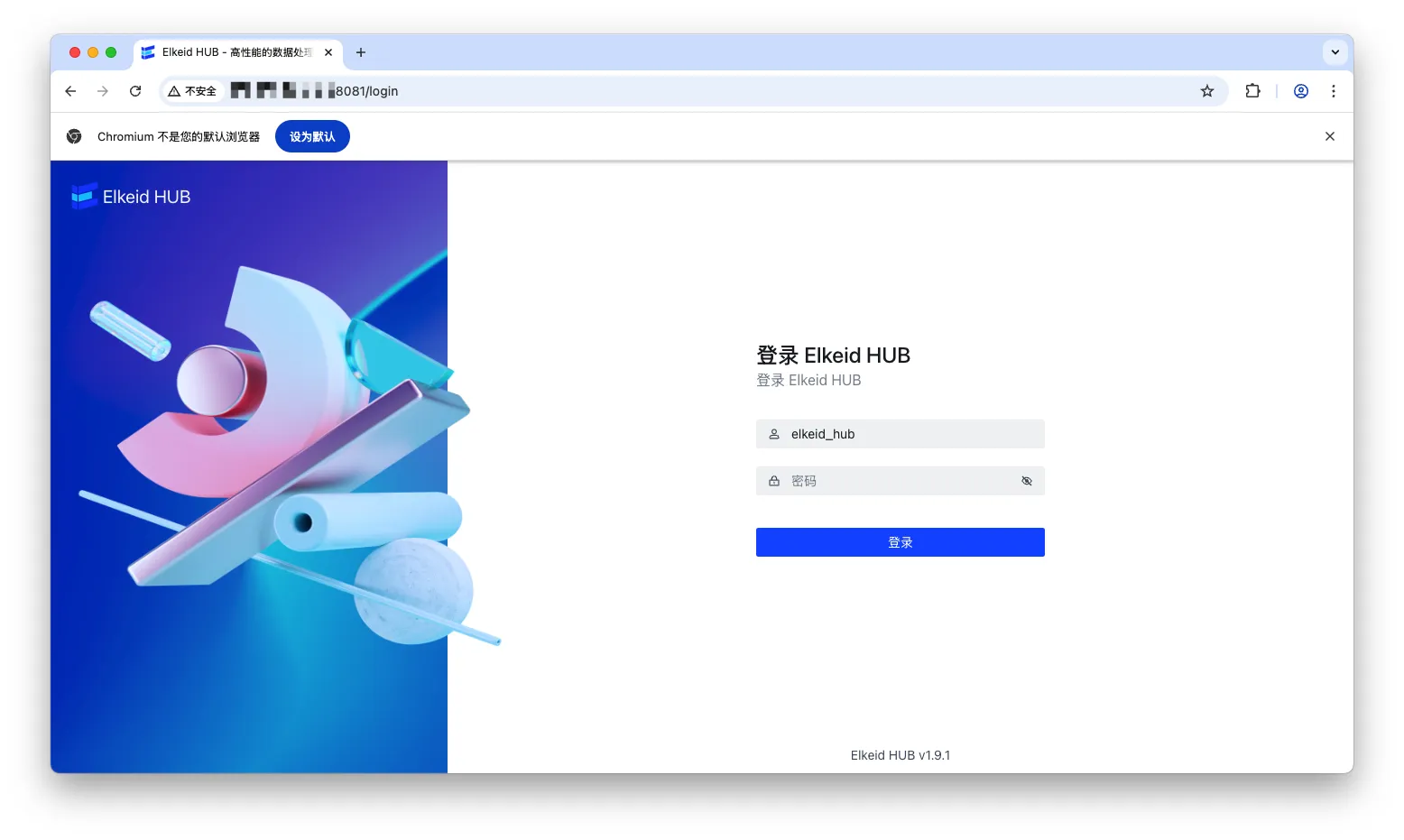

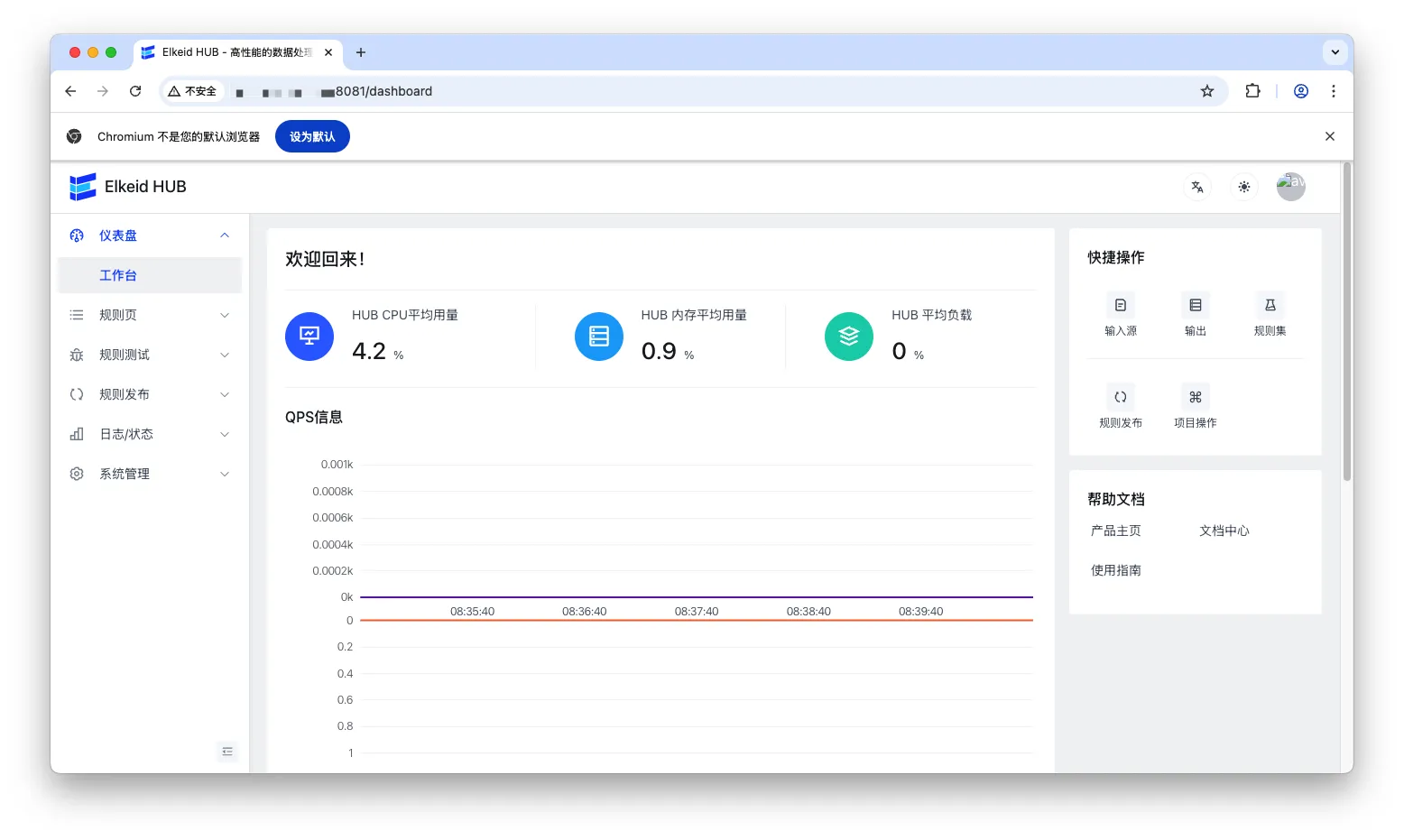

elkeid_hub_frontend: http://127.0.0.1:8081

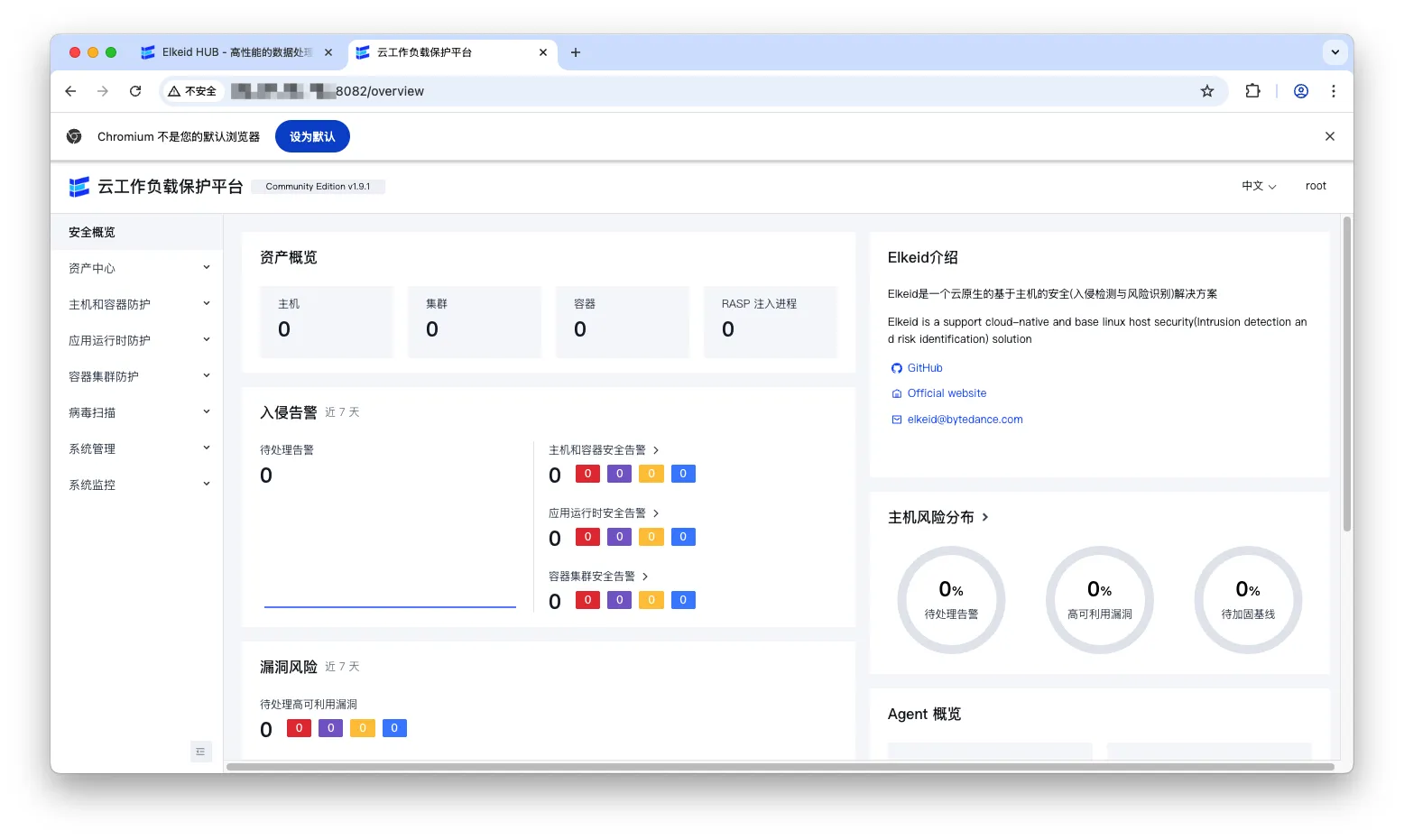

elkeid_console: http://127.0.0.1:8082
elkeid_service_discovery: 127.0.0.1:8089
